Features

- One PS/2-USB VGA console controls two VGA interface computers.

- Dual Interface - supports computers with PS/2 or USB keyboards and mice

- Computer selection via front panel pushbuttons, hotkeys, and mouse

- Multiplatform support - Windows, Linux, Mac, and Sun

- Superior video quality - 2048 x 1536; DDC2B

- Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports

- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice

- Complete keyboard emulation for error-free booting

- Mac/Sun keyboard support and emulation*

- Multilingual keyboard mapping - supports English, Japanese, and French keyboards

- Gaming keyboard support

- Auto Scan Mode for monitoring all computers

- Firmware upgradable

- Non-powered

* 1. PC keyboard combinations emulate Mac/Sun keyboards

* 2. Mac/Sun keyboard work only with their own computers

Package Contents

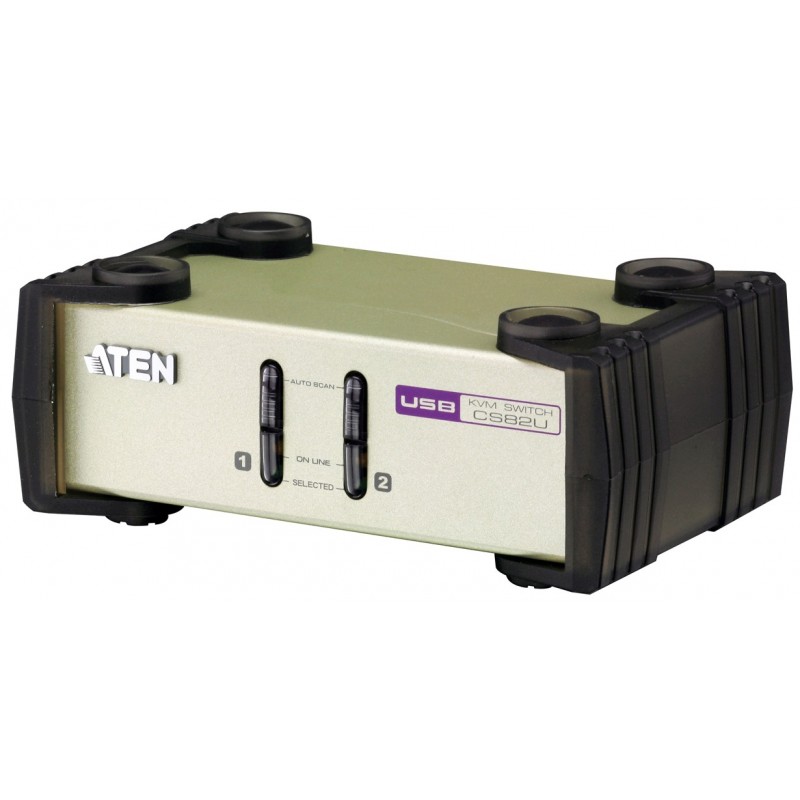

- 1x CS82U PS/2-USB KVM Switch

- 2x 2L-5302UP PS/2 USB KVM Cables

- 1x User Instructions

Audio connections	No
Built-in display	No
Cables included	KVM
Certification	CN ZL 99213861.2, CN ZL 01260527.1, CN ZL 02301203.X, US 6564275, US 6464197, TW 174875, TW 081926
Colour of product	Black, Grey
Compatible operating systems	Windows, Linux, Mac, Sun
Connectivity technology	Wired
DC-in jack	Yes
Depth	140 mm
Dimensions (WxDxH)	87 x 140 x 55 mm
Display resolution at frequency	2048 x 1536 @ 60 Hz
Height	55 mm
Keyboard port type	USB, PS/2
LED indicators	Yes
Maximum resolution	2048 x 1536 pixels
Mouse port type	USB, PS/2
Number of computers controlled	2
Operating relative humidity (H-H)	0 - 80 %
Operating relative humidity range	0 - 80 %
Operating temperature (T-T)	0 - 50 °C
Operating temperature range (T-T)	0 - 50 °C
Power consumption (typical)	1.1 W
Power requirements	5VDC
PS/2 ports quantity	2
RoHS compliance	Yes
Scan interval	20 s
Source data-sheet	Icecat.biz
Storage temperature (T-T)	-20 - 60 °C
Storage temperature range (T-T)	-20 - 60 °C
Technical features	DDC2B
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Video port type	VGA
Weight	540 g
Width	87 mm
