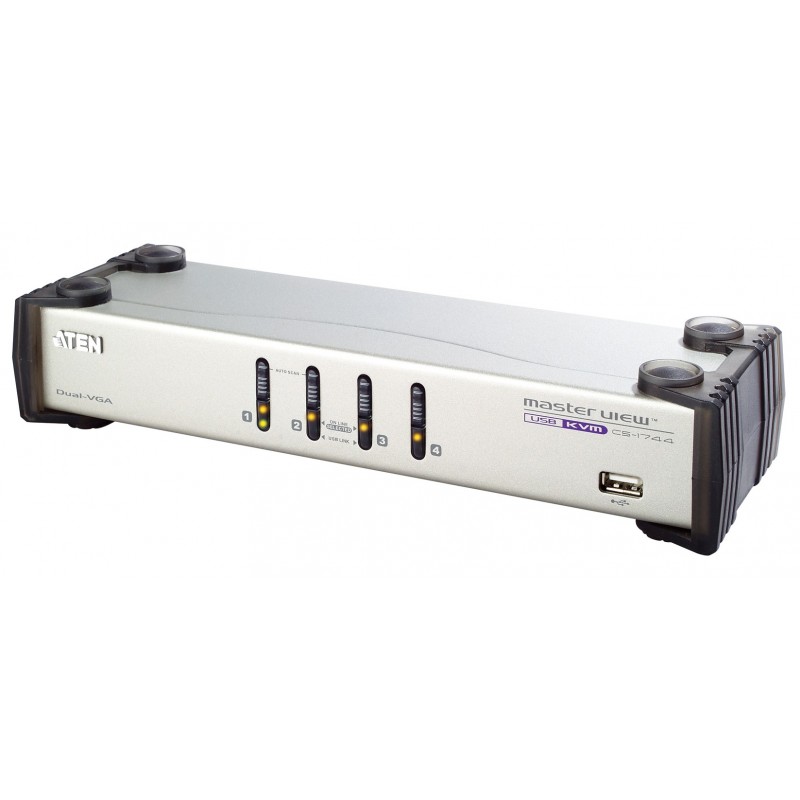

Aten CS1744 4-Port USB Dual-View KVMP™ Switch

Features

- Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control four dual display computers

- 2 port USB Hub built in

- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun

- With speaker and microphone support

- Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus

- Buzzer On/Off via hotkey

- Keyboard and mouse emulation for error free booting

- Computer selection via front panel pushbuttons and hotkeys

- Superior video quality - up to 2048 x 1536; DDC2B

- Firmware upgradeable

- SUN/Mac keyboard support and emulation*

*1.PC keyboard combinations emulate SUN/Mac keyboards.

*2.SUN/Mac keyboards only work with their own computers.

Package Contents

- 1x 4-Port USB Dual-View KVMP™ Switch

- 4x 2L-5202A-1 KVM Cable (Audio/Video)

- 4x 2L-5202U USB KVM Cables

- 1x UC20KMZ-A-11 USB-to-PS/2 Converter

- 1x Firmware Upgrade Cable

- 1x User Instructions

Case or master carton dimensions (W x D x H)	342.9 x 520.7 x 241.3 mm
Colour of product	White
Compatible operating systems	Windows 2000, Windows XP, Windows Vista LINUX Mac Sun FreeBSD
Connectivity technology	Wired
Headphone connectivity	1
Headphone outputs	1
I/O ports	1 x RJ11 Socket
Keyboard port type	USB
Maximum resolution	2048 x 1536 pixels
Microphone in	1
Mouse port type	USB
Operating temperature (T-T)	0 - 50 °C
Operating temperature range (T-T)	0 - 50 °C
Package height	209.55 mm
Package width	342.9 mm
Packaging depth	101.6 mm
Packaging height	209.55 mm
Packaging width	342.9 mm
Ports quantity	4
Power consumption (typical)	1.25 W
Power requirements	DC 5V
Storage temperature (T-T)	-20 - 60 °C
Storage temperature range (T-T)	-20 - 60 °C
Video port type	VGA
