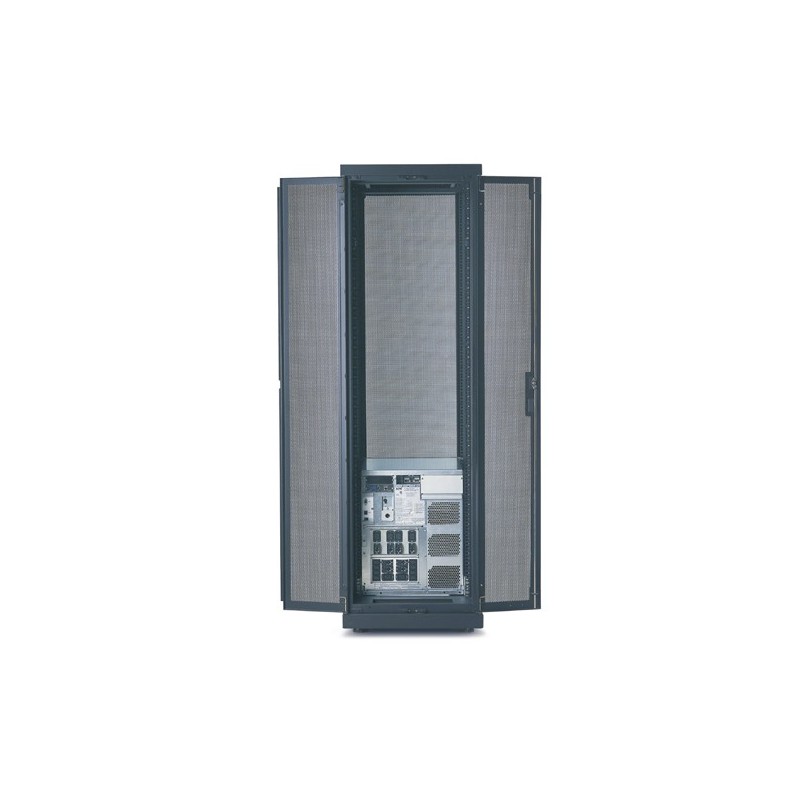

APC Symmetra LX rackmount 4- 8kVA 1+3-Faseblack 13U

Industry’s most space-optimized modular UPS solutions

Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.

Battery type	Lead-Acid
Colour of product	Black, Silver
Compatibility	C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE
Dimensions (WxDxH)	472 x 688 x 572 mm
I/O ports	(1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (6) IEC 320 C19 Hard Wire 3 wire (1PH+N+G)
Input connection type	Hard Wire 3 wire (1PH+N+G)
Interface	DB-9 RS-232, Smart-Slot
Nominal input voltage	230 V
Nominal output voltage	230 V
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	0 - 95 %
Operating relative humidity range	0 - 95 %
Operating temperature (T-T)	0 - 40 °C
Operating temperature range (T-T)	0 - 40 °C
Output connections	(1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (6) IEC 320 C19
Output power	2800 W
Output power capacity (VA)	4000 VA
Output voltage note	220: 230, 240
Package dimensions (WxDxH)	599 x 997 x 1054 mm
Package weight	166360 g
Power supply input frequency	45 - 65 Hz
Source data-sheet	Icecat.biz
Storage relative humidity (H-H)	0 - 95 %
Storage relative humidity range	0 - 95 %
Storage temperature (T-T)	-15 - 45 °C
Storage temperature range (T-T)	-15 - 45 °C
Typical backup time at full load	7.5 min
Typical backup time at half load	20 min
Weight	134090 g
