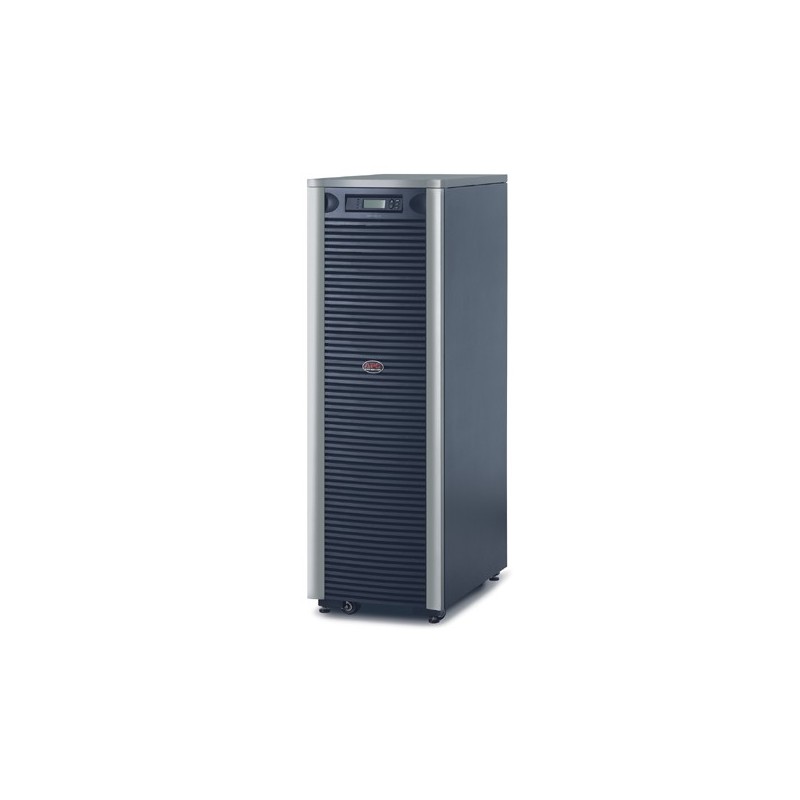

APC Symmetra LX 12kVA Scalable to 16kVA N+1 Ext. Run Tower 220/230/240V or 380/400/415V

APC Symmetra LX, 12000VA/8400W, Input 230V, 400V 3PH/Output 230V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model

Includes: CD with software, Documentation CD, User Manual, Web/SNMP Management Card

General Features:

Audible Alarms,

Automatic internal bypass,

Automatic restart of loads after UPS shutdown,

Automatic self-test,

Battery modules connected in parallel,

Cold-start capable,

Configurable for N+1 internal redundancy,

Disconnected battery notification,

Field-replaceable power distribution panel,

Frequency and voltage regulation,

Generator Compatible,

Hot-swappable batteries,

Hot-swappable intelligence modules,

Hot-swappable power modules,

InfraStruXure Manager Compatible,

Input Power Factor Correction,

Intelligent Battery Management,

LCD display,

Manageable external batteries,

Modular design,

Network manageable,

Plug-and-Play external batteries,

Power conditioning,

Power Modules connected in parallel,

Predictive failure notification,

Programmable Frequency,

Rack/Tower Convertible,

Redundant Intelligence Modules,

Removable input/output wiring tray,

Resettable circuit breakers,

Safety-agency approved,

Scalable Power Capacity,

Scalable runtime,

Shippable with modules installed,

SmartSlot,

User-replaceable batteries,

User-replaceable intelligence modules,

User-replaceable power modules.

Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Colour of product	Black, Silver
Dimensions (WxDxH)	480 x 730 x 1520 mm
I/O ports	Pre-Installed SmartSlot Cards - AP9619
Input connection type	Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Interface	DB-9 RS-232, Smart-Slot
LED indicators	Multi-function LCD status and control console
Networking features	Yes
Nominal input voltage	230, 400 3PH
Nominal output voltage	230 V
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	0 - 95 %
Operating relative humidity range	0 - 95 %
Operating temperature (T-T)	0 - 40 °C
Operating temperature range (T-T)	0 - 40 °C
Output connections	(1) Hard Wire 3-wire (H N + G)
Output power	8400 W
Output power capacity (VA)	12000 VA
Output voltage note	Configurable for 220: 230 or 240 nominal output voltage
Power supply input frequency	45 - 65 Hz
Replacement battery cartridge	SYBT5
Source data-sheet	Icecat.biz
Storage relative humidity (H-H)	0 - 95 %
Storage relative humidity range	0 - 95 %
Storage temperature (T-T)	-15 - 45 °C
Storage temperature range (T-T)	-15 - 45 °C
Typical backup time at full load	35.4 min
Typical backup time at half load	77.4 min
Weight	489 g
