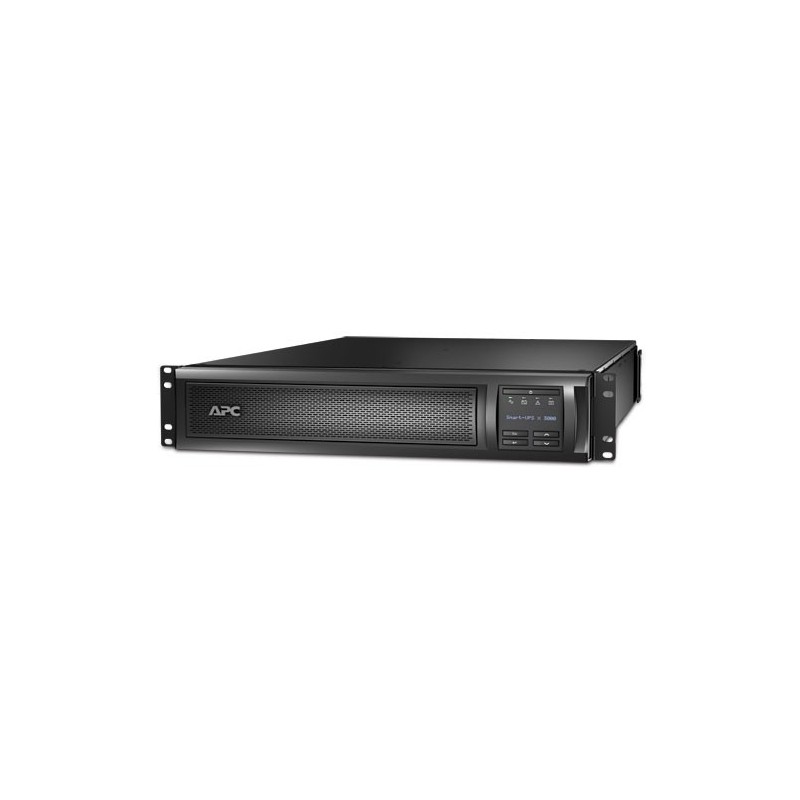

APC SMX3000RMHV2U Smart-UPS X 3000VA Rack/Tower LCD 200-240V
  • APC SMX3000RMHV2U Smart-UPS X 3000VA Rack/Tower LCD 200-240V
  • APC SMX3000RMHV2U Smart-UPS X 3000VA Rack/Tower LCD 200-240V
  • APC SMX3000RMHV2U Smart-UPS X 3000VA Rack/Tower LCD 200-240V
  • APC SMX3000RMHV2U Smart-UPS X 3000VA Rack/Tower LCD 200-240V

Please Note, this product is not for consumer use in the European Union.

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery.



Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.



Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.



Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.



Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.



Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.



Disconnected battery notification

Warns when a battery is not available to provide backup power.



Network manageable

Provides remote management of the UPS over the network.



Audible alarms

Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.



LED status indicators

Quickly understand unit and power status with visual indicators.



Serial Connectivity

Provides management of the UPS via a serial port.



USB connectivity

Provides management of the UPS via a USB port (not available on all models).



Disconnected battery notification

Warns when a battery is not available to provide backup power.
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity9 AC outlet(s)
Battery capacity738 VAh
Battery recharge time3 h
Battery replacement alarmsLED
Battery technologySealed Lead Acid (VRLA)
Battery typeAPCRBC117
Cable length1.83 m
Cables includedRS-232,USB cable
CertificationCE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI
Colour of productBlack
Crest factor3:1
Depth667 mm
Efficiency98.5 %
Form factorRackmount/Tower
Height85 mm
Hot-swap batteryYes
InterfaceSmartSlot
LED indicatorsYes
ManualYes
Noise level55 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output operation voltage (max)240 V
Output operation voltage (min)208 V
Output power2700 W
Output power capacity (VA)3000 VA
Output voltage THD5 %
Package dimensions (WxDxH)596 x 869 x 243 mm
Package height243 mm
Package weight45360 g
Package width596 mm
Power plugC20 coupler
Power supply input frequency50/60 Hz
Quantity per pallet8 pc(s)
Quick installation guideYes
Rack capacity2U
Replacement battery cartridgeAPCRBC117
RoHS complianceYes
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Surge energy rating645 J
Typical backup time at full load6.3 min
Typical backup time at half load18 min
WaveformSine
Weight37320 g
Width432 mm
