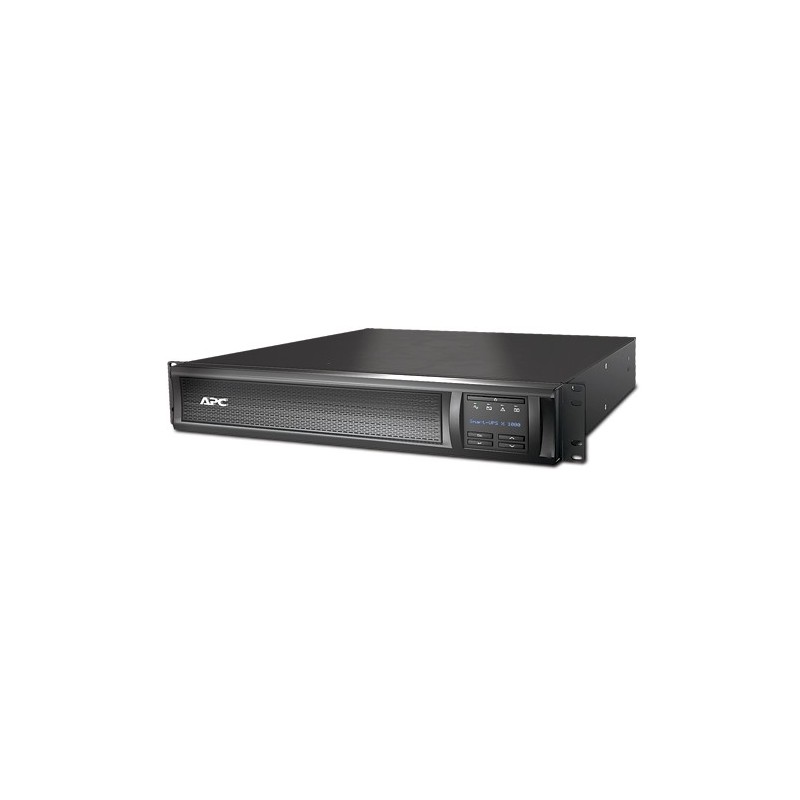

APC SMX1000I Smart-UPS X 1000VA Rack/Tower LCD 230V
  • APC SMX1000I Smart-UPS X 1000VA Rack/Tower LCD 230V
  • APC SMX1000I Smart-UPS X 1000VA Rack/Tower LCD 230V
  • APC SMX1000I Smart-UPS X 1000VA Rack/Tower LCD 230V
  • APC SMX1000I Smart-UPS X 1000VA Rack/Tower LCD 230V

Please Note, this product is not for consumer use in the European Union.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.



High frequency design

Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.



Auto recognition of external batteries

UPS recognizes when external battery packs are attached and automatically adjusts runtime.



Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.



Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.



Energy meter

Provides actual kilowatt hours of usage for energy conscious users.



Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.



Multiple switched outlet groups

Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
AC outlet typesC13 coupler
AC outlets quantity8 AC outlet(s)
Battery capacity299 VAh
Battery recharge time3 h
Battery technologySealed Lead Acid (VRLA)
Cable length1.83 m
Cables includedRS-232,USB cable
CertificationCE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Colour of productBlack
Depth490 mm
Dimensions (WxDxH)89 x 432 x 490 mm
Efficiency98.2 %
Ethernet LAN (RJ-45) ports quantity1
Form factorRackmount/Tower
Height89 mm
Hot-swap batteryNo
Input connection typeIEC-320 C14
Input operation voltage (max)302 V
Input operation voltage (min)151 V
LED indicatorsYes
Noise level40 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections8 x IEC 320 C13
Output power800 W
Output power capacity (VA)1000 VA
Output voltage note220/230/240
Package dimensions (WxDxH)246 x 589 x 620 mm
Package height246 mm
Package weight27320 g
Package width589 mm
Power supply input frequency50/60 Hz
Quantity per pallet8 pc(s)
Quick installation guideYes
Rack capacity2U
Replacement battery cartridgeAPCRBC116
RoHS complianceYes
SafetyYes
Serial ports quantity1
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Surge energy rating600 J
Typical backup time at full load8.1 min
Typical backup time at half load24.2 min
USB portYes
WaveformSine
Weight22860 g
Width432 mm
