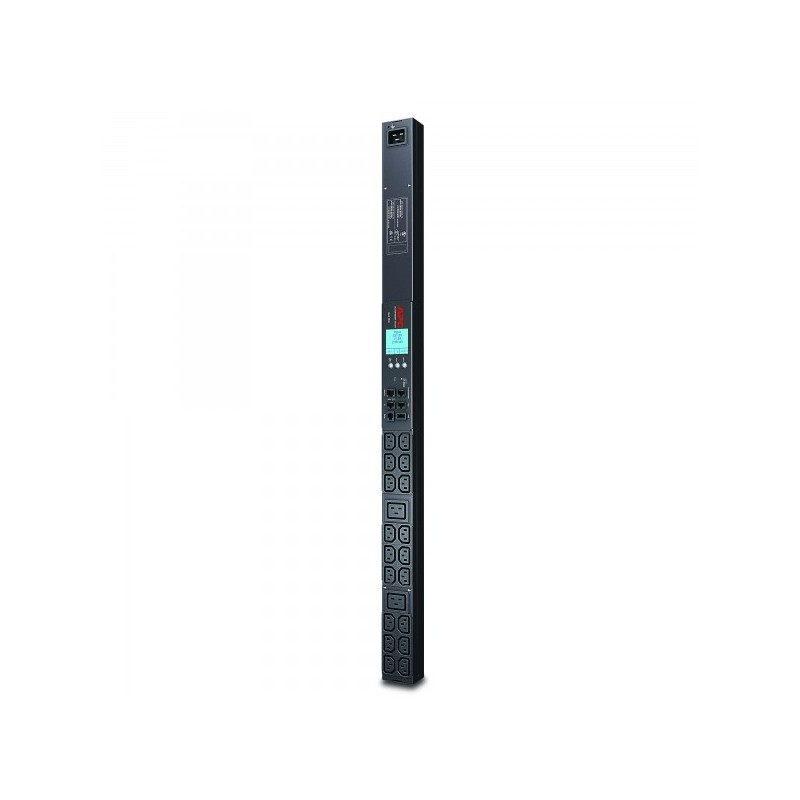

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Certification	CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH
Colour of product	Black
Dimensions (WxDxH)	56 x 44 x 902 mm
Input connection type	IEC-320 C20
Input frequency	50/60 Hz
Maximum input current per phase	20 A
Maximum total current draw per phase	20 A
Nominal input voltage	200 - 230 V
Operating relative humidity (H-H)	5 - 95 %
Operating relative humidity range	5 - 95 %
Operating temperature (T-T)	5 - 45 °C
Operating temperature range (T-T)	5 - 45 °C
Output connections	18x IEC 320 C13 2x IEC 320 C19
Package dimensions (WxDxH)	162 x 107 x 1124 mm
Package weight	4200 g
Source data-sheet	Icecat.biz
Storage relative humidity (H-H)	5 - 95 %
Storage relative humidity range	5 - 95 %
Storage temperature (T-T)	-25 - 65 °C
Storage temperature range (T-T)	-25 - 65 °C
Weight	2930 g
