AC adapter included | Yes |
Antenna connector type | RP-SMA |
Antenna gain level (max) | 6 dBi |
Antenna type | External |
Antennas quantity | 2 |
Cables included | LAN (RJ-45),Phone (RJ-11) |
Cabling technology | 10/100Base-T(X) |
Certification | CE, FCC, RoHS |
Colour of product | White |
Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista, 7, MAC OS, NetWare, UNIX, Linux |
DC-in jack | Yes |
Depth | 130 mm |
Detachable antenna(s) | Yes |
DMZ support | Yes |
DSL connection type | ADSL2+ |
DSL specification | ADSL: ANSI T1.413 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1, (G.hs), ITU-T G.995.1, ADSL2: ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis), ADSL2+: ITU-T G.992.5 |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN (RJ-45) ports quantity | 4 |
Ethernet LAN connection | Yes |
Ethernet LAN data rates | 10,100 Mbit/s |
Ethernet LAN data transfer rates | 10, 100 Mbit/s |
Filtering | MAC, IP, Packet, URL |
Firewall security | NAT, SPI |
Frequency range | 2.4 - 2.4835 GHz |
Height | 36 mm |
Input current | 1.5 A |
LED indicators | Yes |
MAC address filtering | Yes |
Management protocols | SSL f/ TR-069, SNMP v1/2c, CWMP (TR-069) |
NAT functionality | Yes |
Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u |
On/off switch | Yes |
Operating relative humidity (H-H) | 10 - 90 % |
Operating relative humidity range | 10 - 90 % |
Operating temperature (T-T) | 32 - 104 °F |
Operating temperature range (T-T) | 0 - 40 °C |
Power requirements | DC 12V |
Quality of Service (QoS) support | Yes |
Quick start guide | Yes |
Rack mounting | No |
Reset button | Yes |
RJ-11 ports quantity | 1 |
Routing protocols | RIP-1,RIP-2 |
Security algorithms | 128-bit WEP,64-bit WEP,WPA-PSK,WPA2-PSK |
Security algorithms supported | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK |
Source data-sheet | Icecat.biz |
Storage relative humidity (H-H) | 5 - 90 % |
Storage relative humidity range | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Storage temperature range (T-T) | -40 - 70 °C |
Supported network protocols | ATM/PPP, PPTP, PPPoE, PPPoA, IPoA, PVC, L2TP, FTP, DHCP |
Universal Plug and Play (UPnP) | Yes |
USB ports quantity | 1 |
WAN connection | RJ-45 |
Web-based management | Yes |
Wi-Fi standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
Width | 195 mm |
Wireless LAN connection | Yes |
Wireless LAN type | 802.11b, 802.11g, 802.11n |
WLAN data transfer rates supported | 300 Mbit/s |

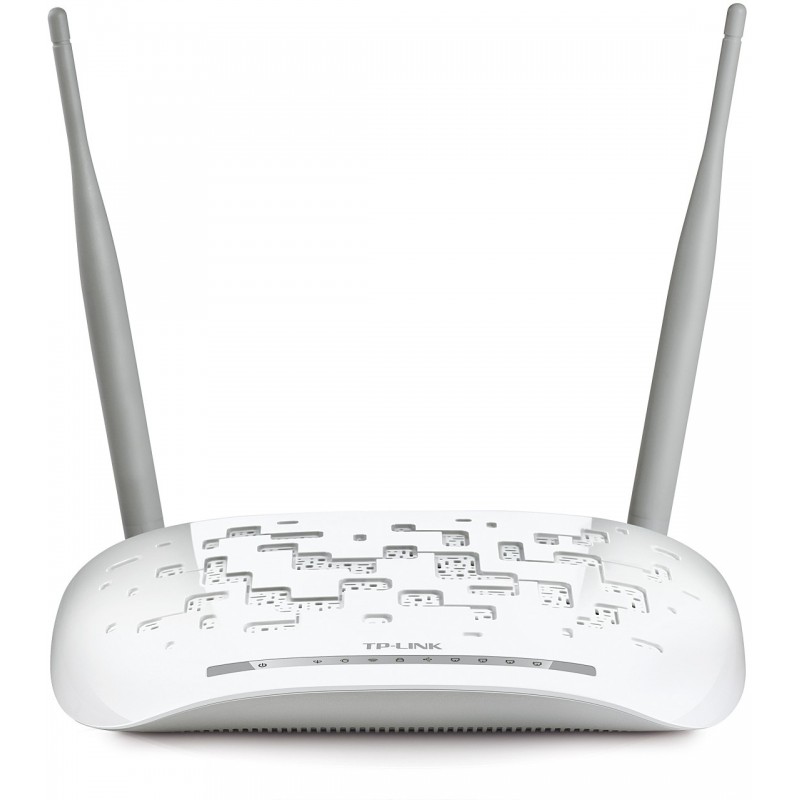

300Mbps Wireless N USB ADSL2+ Modem Router
TD-W8968
