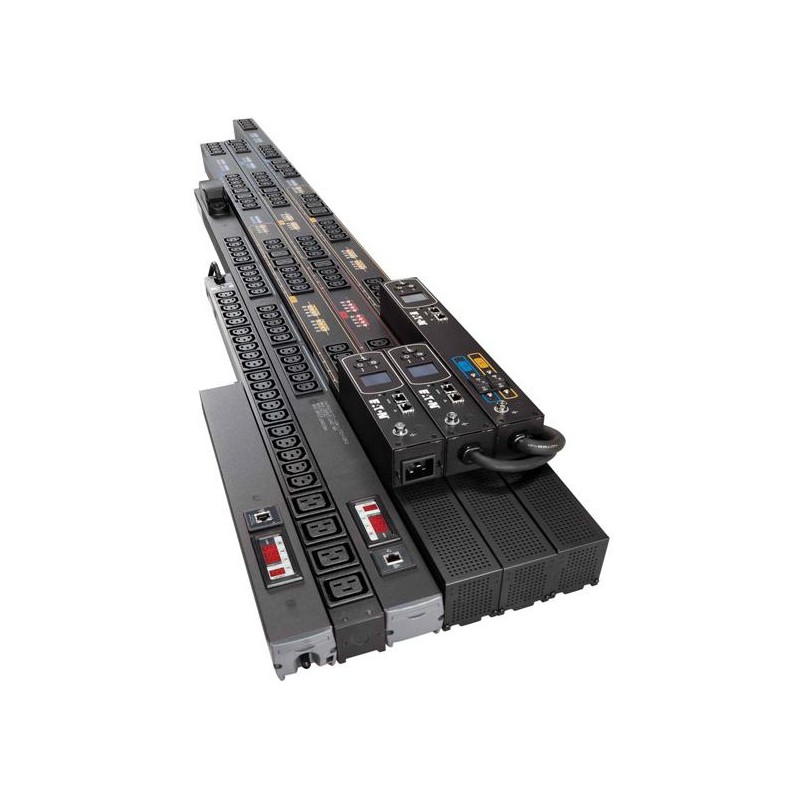

Eaton ePDU Switched - (20) C13, (4) C19
  • Eaton ePDU Switched - (20) C13, (4) C19
  • Eaton ePDU Switched - (20) C13, (4) C19
  • Eaton ePDU Switched - (20) C13, (4) C19

Two key trends have emerged in the data centre: the demand from today’s IT equipment for more power, and the increasing cost of that power. Couple these with the worldwide growth in demand for data
centres and IT servers, and it is clear that data centre managers are facing growing pressure to manage and optimise their available power for growth, at the same time as managing the increasing
associated costs.

To help them achieve this, they need an accurate view of the power and energy being consumed in the data centre – from row to rack, and right down to the individual server level. Only then can they truly understand the power usage and optimise the available power.

AC outlet typesC13 coupler, C19 coupler
Cable length3.0 m
Colour of productBlack
Dimensions (WxDxH)55 x 1524 x 65 mm
DisplayLCD
Ethernet LAN (RJ-45) ports quantity1
Input frequency50 Hz
LED indicatorsYes
Management platformSNMP
MaterialAluminium
Maximum current16 A
Maximum input current per phase16 A
MonitoringCurrent, Humidity, Temperature
Mountingvertical
Nominal input voltage230 V
Output connections20 x C13 & 4 x C19
PDU typesSwitched
Power plugC20 coupler
Rack mounting0U
Serial ports quantity1
Source data-sheetIcecat.biz
Weight6540 g

Eaton ESWA03 ePDU Switched - (20) C13, (4) C19

Switched, 0U, 1 x C20 (16A) In, 20 x C13 & 4 x C19

ESWA03

Out of Stock

£691.39
£576.16 Ex VAT.
