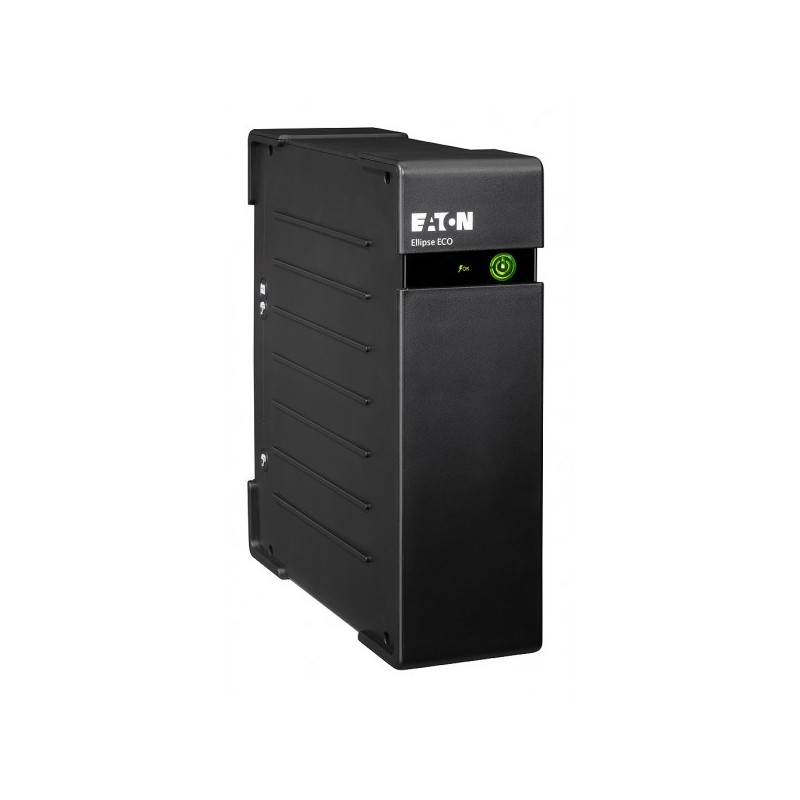

Eaton Ellipse ECO 500 IEC
The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
AC outlet typesC13 coupler
AC outlets quantity4 AC outlet(s)
Battery replacement alarmsAudible,LED
Battery technologySealed Lead Acid (VRLA)
Colour of productBlack
Depth235 mm
Ethernet LAN (RJ-45) ports1
Ethernet LAN (RJ-45) ports quantity1
Form factorRackmount
Height263 mm
Hot-swap batteryYes
Input connection typeIEC
Input operation voltage (max)284 V
Input operation voltage (min)161 V
LED indicatorsYes
Nominal input voltage230 V
Nominal output voltage220-240 V
Output operation voltage (max)240 V
Output operation voltage (min)220 V
Output power300 W
Output power capacity (VA)500 VA
Power plugC14 coupler
Power supply input frequency50/60 Hz
Rack capacity2U
Rack mountingYes
SafetyIEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
Source data-sheetIcecat.biz
Surge protection featuresFax,Modem,Network,Telephone
Typical backup time at half load9 min
Weight2900 g
Width81 mm
