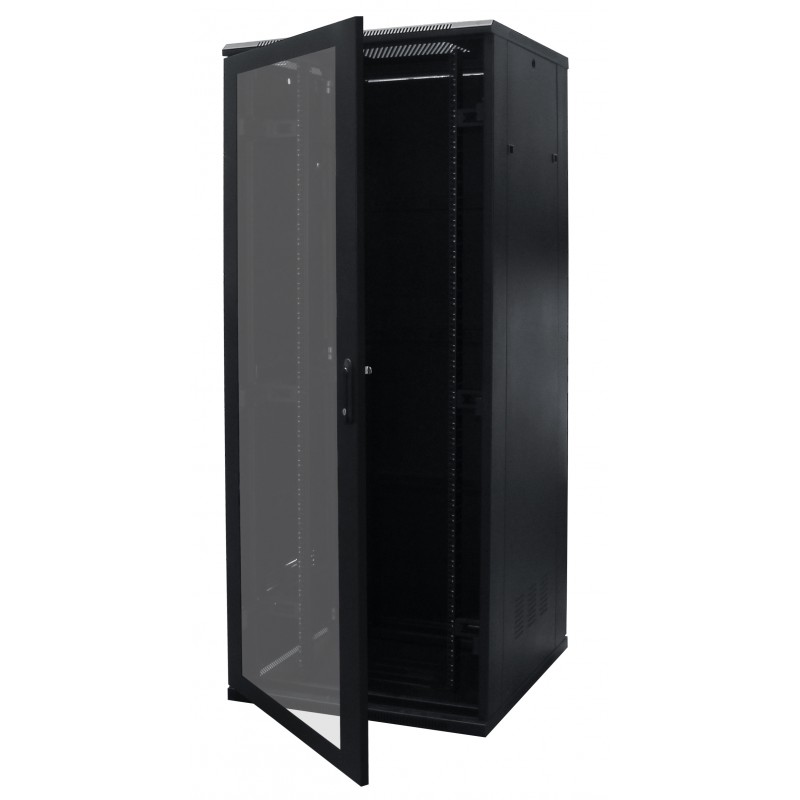

42u Rax 600mm x 600mm Data Cabinet

RackyRax 19” Data Cabinets combine all the features of a premium data cabinet including the aesthetically pleasing design, without the price-point to match.

The Data Cabinets are available in various configurations and are supplied fully assembled. Each cabinet utilises a ventilated top and four 19” adjustable front and rear mounting posts. The cabinets feature lift-off sides and a lockable door for maximum access to the internal equipment, with cable access in the base for convenient routing of network cables. The side panels can be fitted with cabinet locks. The cabinet frameworks are finished in black with a toughened glass lockable front door

Each Cabinet is assembled in the UK using the highest quality components and boast an impressive load rating of up to 800kg (evenly distributed). The RackyRax range of Data Cabinets has been designed ensure easy installation and maintenance

Cable access can be made through removable gland plates in the roof or through the open base.

Each RackyRax Cabinet is supplied fully assembled and ready to go

Features:

  • 800kg loading capacity (evenly distributed)
  • Lockable/removable perspex front door with steel surround
  • Lockable/removable steel rear door
  • Removable steel side panels
  • Adjustable 19” mounting profiles front and rear
  • Optional roof mounted fan
  • Removable gland plates top and bottom for cable access

A full range of accessories are available to complement the cabinet including Jacking feet, transport castors, shelves and vertical cable trays


Dimensions By U Height

U HeightSize (HxWxD)Weight
12U635x600x600 mm28 Kg
18U902x600x600 mm37.8 kg
21U1035x600x600 mm48 Kg
24U1168x600x600 mm51 Kg
27U1302x600x600 mm54.6 Kg
39U1835x600x600 mm70 Kg
42U1968x600x600 mm74.6 Kg
45U2103x600x600 mm92.3 Kg
Cable EntryTop & Bottom
Depth600mm
Internal Working Depth480mm
Mounting Profiles19" Adjustable Front & Rear
Side PanelsRemovable
Width600mm
