HomeRack PowerPower ManagementCurrent & Power MetersAPC AP7152 In-Line Current Meter, 16A, 230V, IEC309-16A, 2P+G
APC In-Line Current Meter 16A 230V IEC309-16A 2P+G
  • APC In-Line Current Meter 16A 230V IEC309-16A 2P+G
  • APC In-Line Current Meter 16A 230V IEC309-16A 2P+G
  • APC In-Line Current Meter 16A 230V IEC309-16A 2P+G
  • APC In-Line Current Meter 16A 230V IEC309-16A 2P+G
  • APC In-Line Current Meter 16A 230V IEC309-16A 2P+G

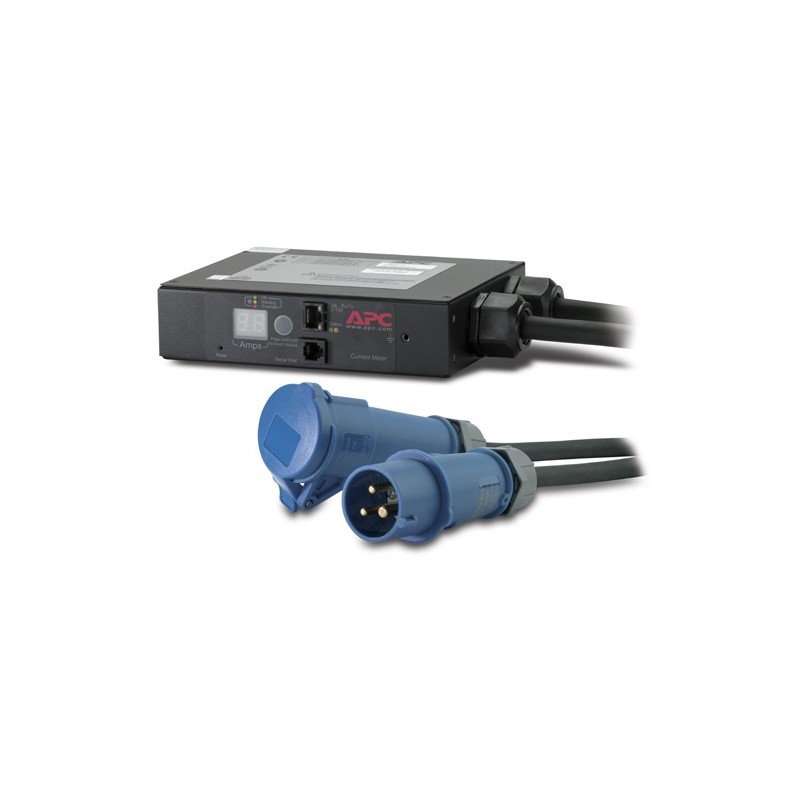

The APC In-Line Current Meter monitors current to devices in the datacenter including existing basic rack PDUs and freestanding equipment.



- Network Management.

- Flash Upgradeable.

- Single input power source.

- Alarm Thresholds.

- Local and web-based monitoring.

- Local Current Monitoring Display.

- Multiple mounting methods.

- Remote Management Capabilities.

- Remote Current Monitoring.
Cable length0.91 m
CertificationAS/NZS 3548 (C-Tick) Class A,C-tick,CE,EN 55022 Class A,EN 55024,EN 61000-3-2,EN 61000-3-3,GOST,IEC 61000-3-2,IEC 61000-3-3,VDE
Colour of productBlack
Dimensions (WxDxH)178 x 140 x 44 mm
Input connection typeIEC 309 16A 2P+E
Input frequency50/60 Hz
Load capacity3680 VA
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Nominal input voltage230 V
Nominal output voltage230 V
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Operating temperature range (T-T)-5 - 45 °C
Output connections(1) IEC 309 16A (2P+E)
Source data-sheetIcecat.biz
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-25 - 65 °C
Storage temperature range (T-T)-25 - 65 °C
Weight1840 g
