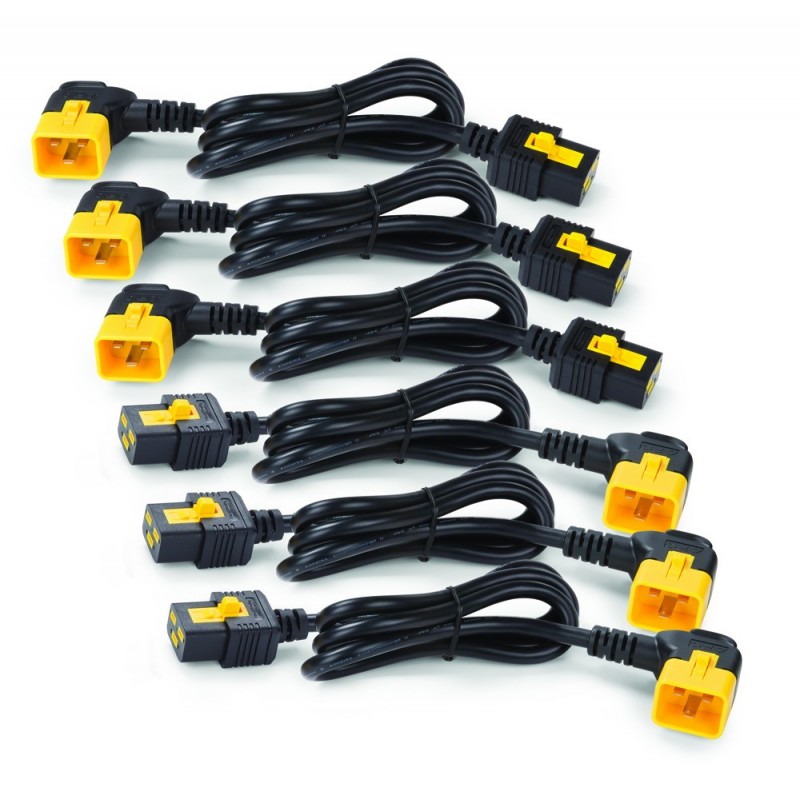

APC AP8716R Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 1.8m

More Info
Details

Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Includes: 3 Left-angle jumper cords, 3 Right-angle jumper cords

Cable length	1.83 m
Colour of product	Black
Connector 1	IEC-320 C19
Connector 2	IEC-320 C20
Dimensions (WxDxH)	80 x 70 x 300 mm
Gender	Male/Female
Gender type	Male/Female
Input current	16 A
Non-operating altitude	0 - 15000 m
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	20 - 80 %
Operating relative humidity range	20 - 80 %
Operating temperature (T-T)	0 - 75 °C
Operating temperature range (T-T)	0 - 75 °C
Package height	300 mm
Package weight	2160 g
Package width	80, 70 mm
Packaging height	300 mm
Packaging width	80, 70 mm
Source data-sheet	Icecat.biz
Storage relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-25 - 75 °C
Storage temperature range (T-T)	-25 - 75 °C
Weight	2160 g
