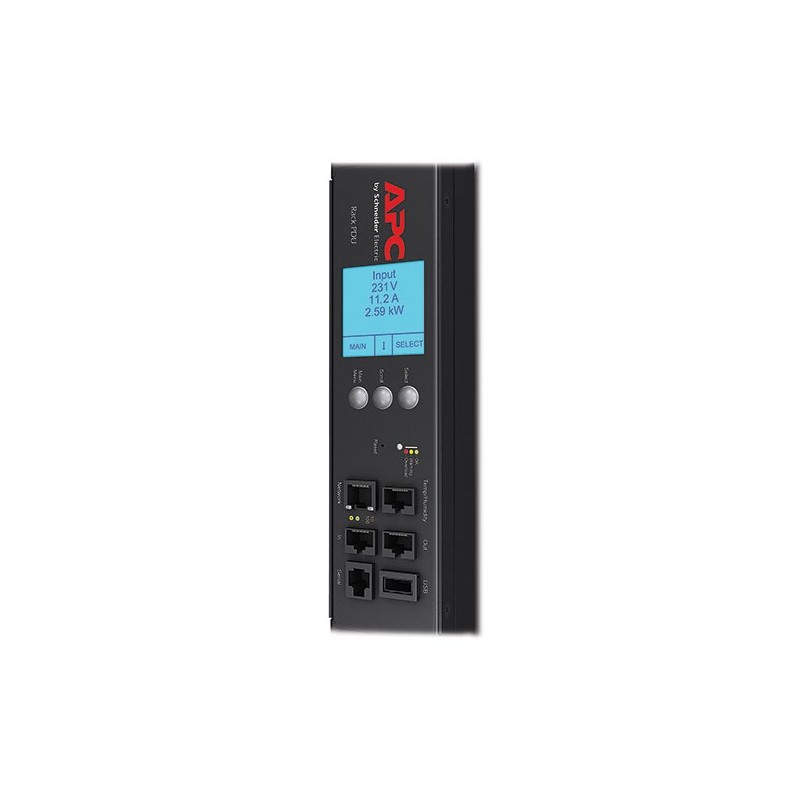

APC Metered-by-Outlet Rack PDU AP8659
  • APC Metered-by-Outlet Rack PDU AP8659
  • APC Metered-by-Outlet Rack PDU AP8659
  • APC Metered-by-Outlet Rack PDU AP8659
  • APC Metered-by-Outlet Rack PDU AP8659
  • APC Metered-by-Outlet Rack PDU AP8659
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
AC outlets quantity24 AC outlet(s)
CertificationEN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE
Colour of productBlack
Dimensions (WxDxH)56 x 51 x 1829 mm
Input frequency50/60 Hz
Maximum current16 A
Maximum input current per phase16 A
Nominal input voltage200-230 V
Nominal output voltage200-230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Operating temperature range (T-T)-5 - 45 °C
Package dimensions (WxDxH)162 x 117 x 2038 mm
Package weight8360 g
PDU typesMetered
Power plugC20 coupler
Rack mounting0U
RoHS complianceYes
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-25 - 65 °C
Storage temperature range (T-T)-25 - 65 °C
Weight6090 g

Similar products

  • APC AP8653 Metered-by-Outlet Rack PDU
    APC AP8653 Metered-by-Outlet Rack PDU
  • APC AP8659EU3 Metered-by-Outlet Rack PDU
    APC AP8659EU3 Metered-by-Outlet Rack PDU

APC AP8659 Metered-by-Outlet Rack PDU

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 20A/208V, 16A/230V, (21) C13 & (3) C19

AP8659

In Stock

£1,566.17
£1,305.14 Ex VAT.
