AC input frequency | 50/60 Hz |
AC input voltage | 220 - 240 V |
Antenna type | internal |
Cables included | LAN (RJ-45) |
Certification | CE, RoHS |
Depth | 52 mm |
Ethernet LAN | Y |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 10,100 Mbit/s |
Height | 58.3 mm |
LED indicators | LAN,PLC,Power |
Linux operating systems supported | Y |
Mac operating systems supported | Y |
Maximum data transfer rate | 1000 Mbit/s |
Maximum operating distance | 300 m |
Modulation | OFDM |
Networking standards | IEEE 1901,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Package height | 100 mm |
Package weight | 430 g |
Package width | 190 mm |
Plug and Play | Y |
Power consumption (typical) | 2.3 W |
Quantity per pack | 2 pc(s) |
Quick installation guide | Y |
Security algorithms | 128-bit AES |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Width | 65 mm |
Windows operating systems supported | Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Star |
Sustainability certificates | RoHS |
Gigabit Ethernet, HomePlug AV2, EEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, 65 x 52 x 28.5mm

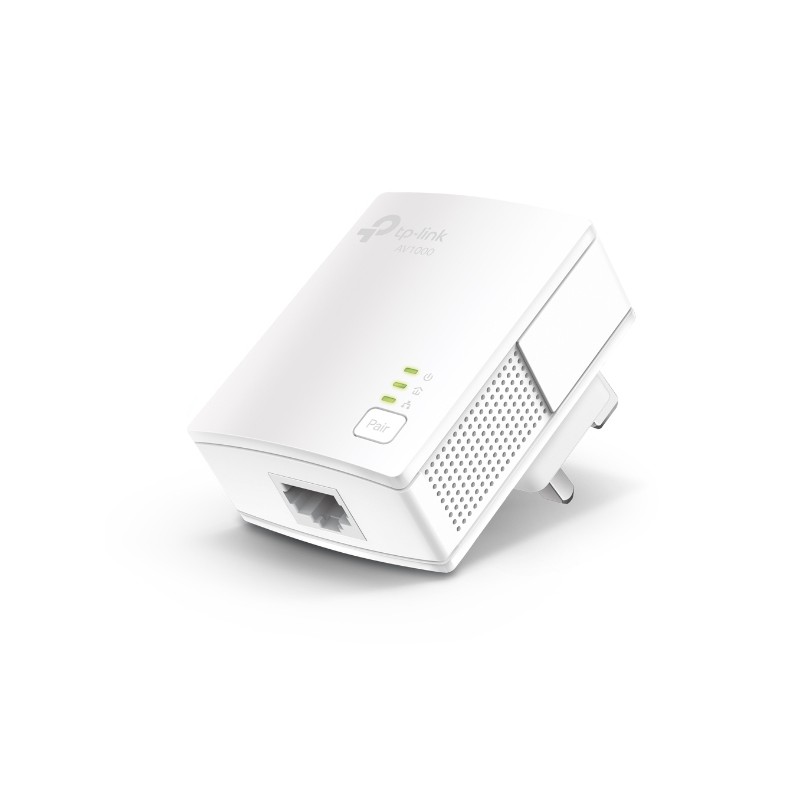

TL-PA717KIT
Out of Stock
