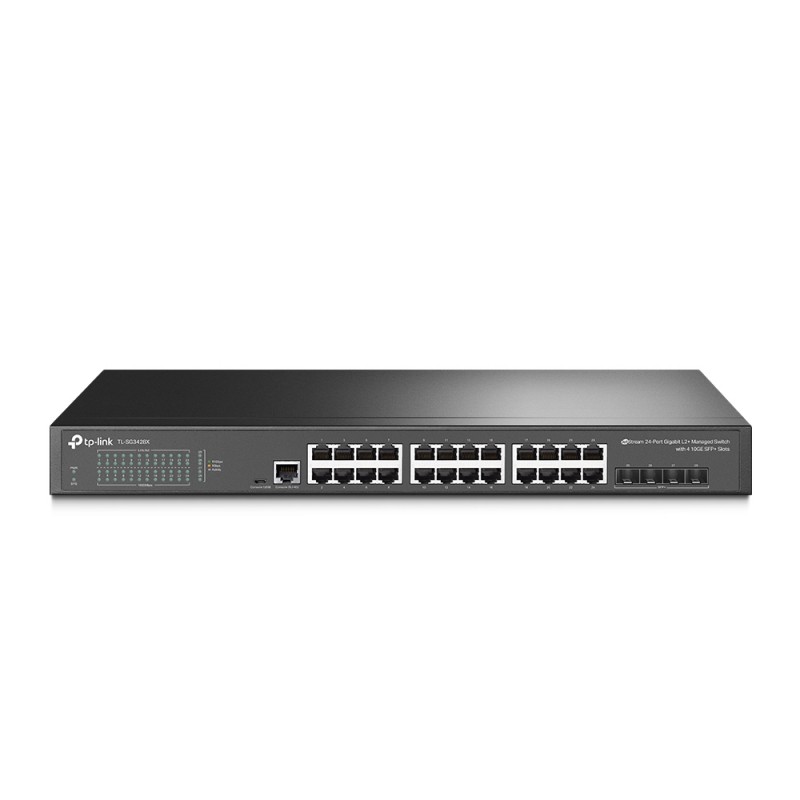

TP-LINK JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-LINK JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-LINK JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-LINK JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-LINK JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
TP-Link’s JetStream L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.Software Defined Networking (SDN) with Cloud Access Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Cables includedLAN (RJ-45)
Depth180 mm
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportY
Heat dissipation80.353 BTU/h
Height44 mm
LED indicatorsY
MAC address table16000 entries
MIB supportYes
Networking standardsIEEE 802.11d,IEEE 802.1s,IEEE 802.1w
Number of static routes48
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Power consumption (typical)23.6 W
Power over Ethernet (PoE)No
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingYes
Spanning tree protocolY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2+
Switch typeManaged
Switching capacity128 Gbit/s
Web-based managementY
Width440 mm
Cloud-managedY
IGMP proxyY

tl-sg3428x.pdf

TP-LINK JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots Data Sheet

Download (3.22M)
