10G support | No |
Auto MDI/MDI-X | Y |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Certification | CE, FCC, RoHS |
Depth | 72 mm |
Flow control support | Y |
Heat dissipation | 12.617 BTU/h |
Height | 23 mm |
Housing material | Plastic |
Input current | 0.6 A |
International Protection (IP) code | IP20, IP40 |
LED indicators | Y |
MAC address table | 2000 entries |
Networking standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Packet buffer memory | 1.5 MB |
Power over Ethernet (PoE) | No |
Quick start guide | Y |
Rack mounting | No |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Store-and-forward | Y |
Switching capacity | 10 Gbit/s |
Width | 90 mm |

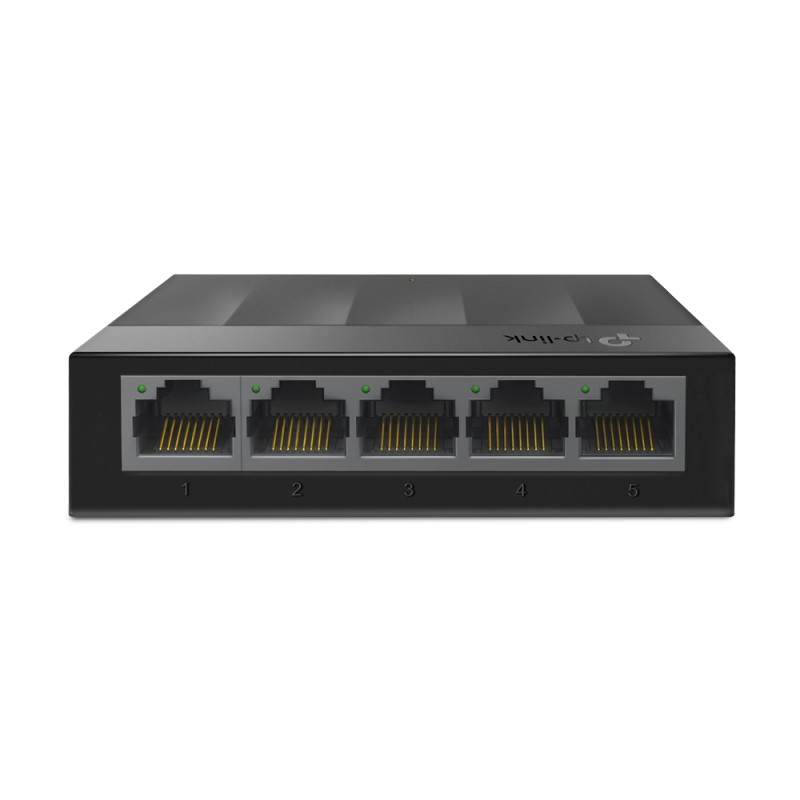

LS1005G, IEEE 802.3i/802.3u/ 802.3ab/802.3x, 5x 1G RJ-45, 10 Gbps, 7.4 Mpps, 90x72x23 mm
LS1005G
In Stock
