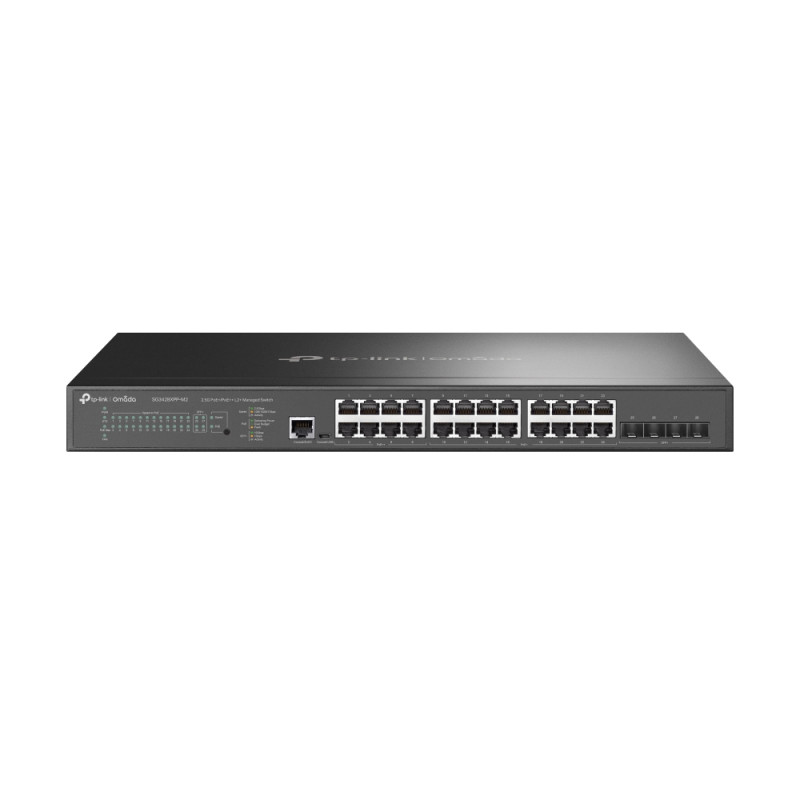

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
  • TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
  • TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
Cables includedAC
Depth330 mm
Ethernet LAN data rates10,100,1000,2500,10000 Mbit/s
Flash memory32 MB
Flow control supportY
Form factor1U
Full duplexY
Heat dissipation2153.45 BTU/h
Height44 mm
Internal memory256 MB
LED indicatorsY
MAC address table32000 entries
Management protocolsSNMP v1/v2c/v3
Memory typeDRAM
MIB supportRFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of static routes48
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory16 MB
Power over Ethernet (PoE)Yes
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingYes
Redundant power supply (RPS) supportY
Security algorithmsHTTPS,SSH,SSH-2,SSL/TLS
Spanning tree protocolY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Switch layerL2+
Switch typeManaged
Switching capacity200 Gbit/s
Web-based managementY
Width440 mm
Half duplexY
Cloud-managedY
Sustainability complianceY
IPv4 routes48
IPv6 routes48
2.5G Ethernet (copper) ports quantity24
Compliance certificatesCE,Federal Communications Commission (FCC),RoHS
Power over Ethernet 4PPoE (PoE++) ports quantity8

sg3428xpp-m2.pdf

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ Data Sheet

Download (13.02M)
