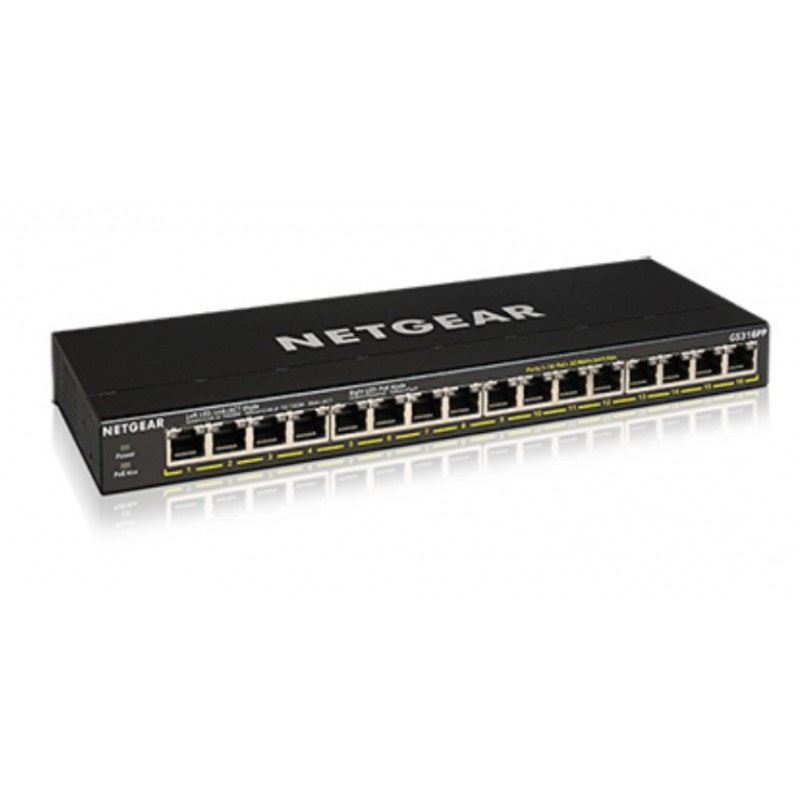

Netgear GS316PP
  • Netgear GS316PP
  • Netgear GS316PP
  • Netgear GS316PP
  • Netgear GS316PP
  • Netgear GS316PP
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.



The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.



NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.
10G supportNo
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE, FCC Part A, IC A, RCM, VCCI, BSMI, KC, CB, CE LVD
Depth102 mm
Flow control supportY
Full duplexY
Heat dissipation669.9 BTU/h
Height27 mm
Housing materialMetal
Input current3.7 A
LED indicatorsActivity,Link,PoE,Power,Speed
MAC address table4000 entries
Mean time between failures (MTBF)2362192 h
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory1 MB
Power over Ethernet (PoE)Yes
Quality of Service (QoS) supportY
Rack mountingYes
Storage temperature (T-T)-20 - 70 °C
Switch typeUnmanaged
Switching capacity32 Gbit/s
Weight880 g
Width286 mm

gs316pp-100eus.pdf

Netgear GS316PP Data Sheet

Download (947.79k)
