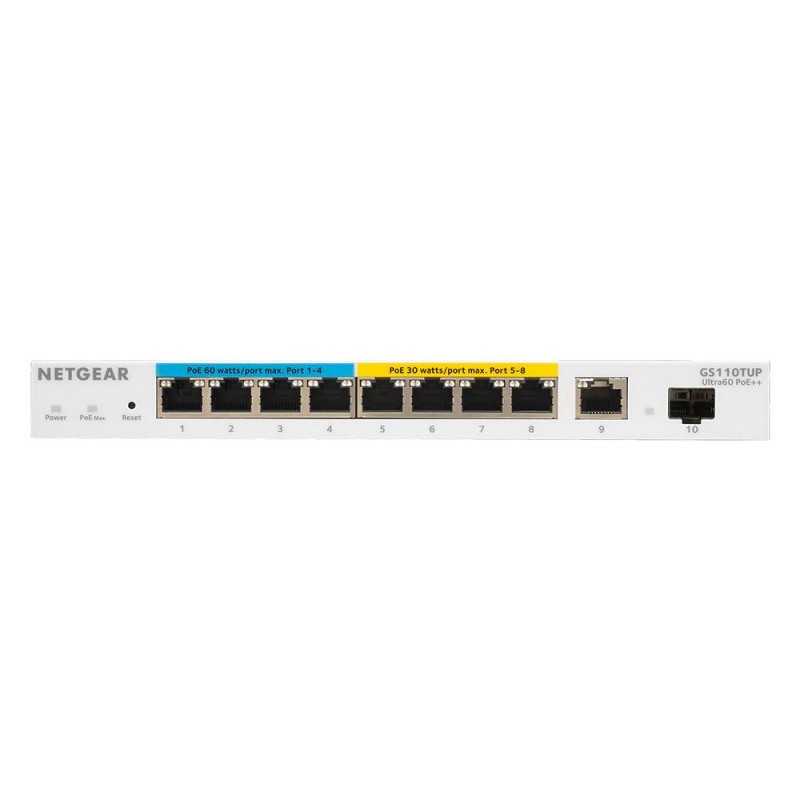

Netgear 10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Desktop Switch with 1 SFP and 1 Copper Uplink
  • Netgear 10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Desktop Switch with 1 SFP and 1 Copper Uplink
  • Netgear 10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Desktop Switch with 1 SFP and 1 Copper Uplink
  • Netgear 10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Desktop Switch with 1 SFP and 1 Copper Uplink
  • Netgear 10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Desktop Switch with 1 SFP and 1 Copper Uplink
  • Netgear 10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Desktop Switch with 1 SFP and 1 Copper Uplink
  • Netgear 10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Desktop Switch with 1 SFP and 1 Copper Uplink
Introducing the NETGEAR GS110TUP Ultra60 PoE++ 10-Port Gigabit Ethernet Smart Managed Pro Switch with 4 ports PoE++, 4 ports PoE+ and 1 Gigabit Copper and 1 SFP uplinks with Remote Cloud management activation. GS110TUP provides a total PoE budget of 240W and advanced PoE features such as uninterrupted PoE for powerful PoE applications.



Each Ultra60 PoE++ port can provide up to 60 watts to power up the connected devices such as LED lighting, PTZ cameras, IoT, with a PoE power budget of 240W. Fanless, the GS110TUP supports perfectly silent desktop operation, rack mounting, VESA wall mounting, and ceiling mounting compatible. This Smart Managed Pro switch offers an easy-to-use Web browser-based management GUI with configurable L2/L2+ network features like VLANs and PoE operation scheduling. The IGMP snooping feature can automatically define explicit action multicast groups to be supported per port. This switch also comes with NETGEAR Insight Cloud management activation for anytime remote management and monitoring through an intuitive app or Cloud Portal.



Advanced features such as IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TUP is backed by NETGEAR’s ProSAFE limited lifetime Warranty and 24/7 technical support.
10G supportNo
Bandwidth20 Gbit/s
Basic switching RJ-45 Ethernet ports quantity10
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Depth101 mm
Full duplexY
Heat dissipation945 BTU/h
Height27 mm
Input current4.7 A
LED indicatorsActivity,Link,PoE,Power,Speed
MAC address table8000 entries
Mean time between failures (MTBF)695508 h
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3x
Non-operating altitude0 - 3000 m
Number of VLANs64
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory0.512 MB
Power over Ethernet (PoE)Yes
Quick start guideY
Rack mountingYes
Reset buttonY
Security algorithmsSSL/TLS
StackableYes
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Store-and-forwardY
Switch layerL2/L3
Switch typeManaged
Switching capacity20 Gbit/s
Weight630 g
Width236 mm
Master (outer) case width402 mm
Master (outer) case length453 mm
Master (outer) case height357 mm
Master (outer) case weight20140 g
Quantity per master (outer) case6 pc(s)

gs110tup-100eus.pdf

Netgear 10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Desktop Switch with 1 SFP and 1 Copper Uplink Data Sheet

Download (761.1k)

Similar products

  • Netgear M4500-32C
    Netgear M4500-32C
  • Netgear GS108T-300
    Netgear GS108T-300
  • Netgear GS110TP
    Netgear GS110TP
  • Netgear GS110TPP
    Netgear GS110TPP

Netgear 10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Desktop Switch with 1 SFP and 1 Copper Uplink

9x 10/100/1000Base-T, 1x 1000BASE-X, RJ-45, SFP, PoE++, 276.8 W, DC 54 V, 4.7 A, 236 x 101 x 27 mm, 630 g

GS110TUP-100EUS

Out of Stock

£380.60
£317.17 Ex VAT.
