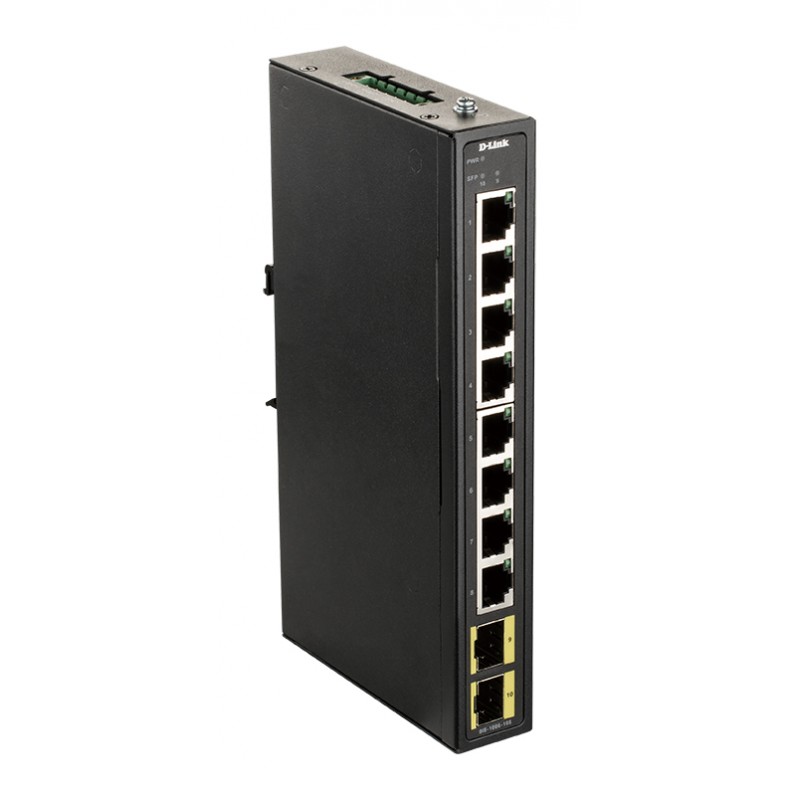

D-Link DIS-100G-10S
  • D-Link DIS-100G-10S
  • D-Link DIS-100G-10S
Unmanaged Plug and Play Plug in and go. The DIS-100G-5SW reliably forwards Ethernet frames.Gigabit Connectivity with SFP slot Designed with 4 x 100/1000Base-T ports and 1 x 100/1000BaseSFP slot to suit a range of devices and network layouts.Officially Certified Certifications for vibration, shock, free-fall, NEMA‑TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.Withstands Extreme Temperatures Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.Strong Build The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.Fast Deployment For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.Fanless Design With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Certification47 CFR FCC Part 15 Subpart B (Class A), ICES-003 Issue 6 (Class A) EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5 Surge, EN 61000-4-6 CS, EN 61000-4-8 IEC 60068-2-27 Shock, • IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration CE, FCC
Copper ethernet cabling technology1000Base-T
Depth28 mm
Height100 mm
Input current1 A
International Protection (IP) codeIP40
LED indicatorsActivity,Link,Power
MAC address table4000 entries
Mean time between failures (MTBF)392267 h
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-20 - 65 °C
Quality of Service (QoS) supportY
StackableYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-20 - 85 °C
Store-and-forwardY
Switch typeManaged
Switching capacity20 Gbit/s
Weight498 g
Width190 mm
FanlessY

dis-100g-10s.pdf

D-Link DIS-100G-10S Data Sheet

Download (806.42k)
