10G support | Yes |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Auto MDI/MDI-X | Y |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Cable types supported | Cat5,Cat5e |
Certification | CB, UL, BSMI, CCC |
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
Depth | 140 mm |
Electromagnetic compatibility | CE A, VCCI A, FCC A, IC, BSMI |
Fiber ethernet cabling technology | 100BASE-FX,1000BASE-LHX,1000BASE-X,1000BASE‑LX,1000BASE‑SX,1000BASE‑ZX |
Firmware upgradeable | Y |
Flash memory | 64 MB |
Flow control support | Y |
Full duplex | Y |
Heat dissipation | 104.346 BTU/h |
Height | 44 mm |
Internal memory | 2048 MB |
LED indicators | Activity,Link,Power,Speed |
MAC address table | 16000 entries |
Mean time between failures (MTBF) | 743482.45 h |
Memory type | DDR3-SDRAM |
MIB support | RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, |
Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
Noise level | 47.6 dB |
Number of static routes | 124 |
Number of VLANs | 4094 |
Operating relative humidity (H-H) | 0 - 95 % |
Operating temperature (T-T) | -5 - 50 °C |
Package height | 89 mm |
Package weight | 2966 g |
Package width | 282 mm |
Packet buffer memory | 12 MB |
Power over Ethernet (PoE) | N |
Quality of Service (QoS) support | Y |
Security algorithms | EAP,MD5,PEAP,SSH,SSL/TLS,TTLS |
Spanning tree protocol | Y |
Storage relative humidity (H-H) | 0 - 95 % |
Storage temperature (T-T) | -20 - 70 °C |
Store-and-forward | Y |
Switch layer | L3 |
Switch type | Managed |
Switching capacity | 128 Gbit/s |
Web-based management | Y |
Weight | 3860 g |
Width | 440 mm |
Shipping (inner) case net weight | 11644 g |
Quantity per shipping (inner) case | 5 pc(s) |
Shipping (inner) case gross weight | 16213 g |
Pallet gross weight (air) | 407612 g |
Number of cartons per pallet (air) | 24 |
Quantity per pallet (air) | 120 pc(s) |
Pallet height (air) | 2043 mm |
Pallet gross weight (sea) | 407612 g |
Number of cartons per pallet (sea) | 24 |
Quantity per pallet (sea) | 120 pc(s) |
Pallet height (sea) | 2043 mm |

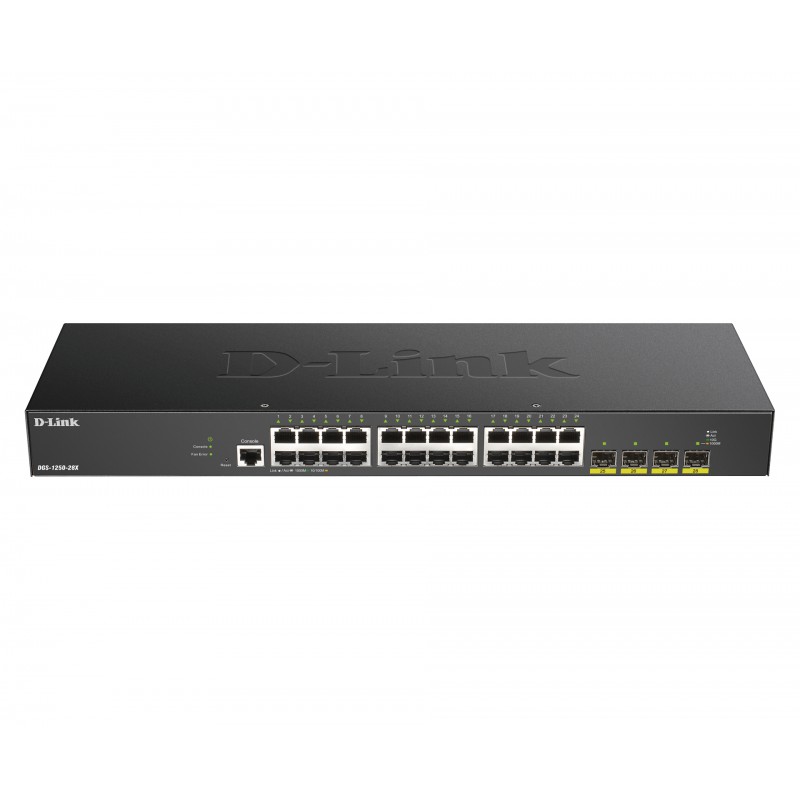

DGS-1250-28X, 24x 10/100/1000BASE-T, 4x 10G SFP+, 128 Gbps, 95.24 Mpps, 100-240V AC, VLAN, QoS, L3, ACL, 440x140x44 mm
DGS-1250-28X
Out of Stock
