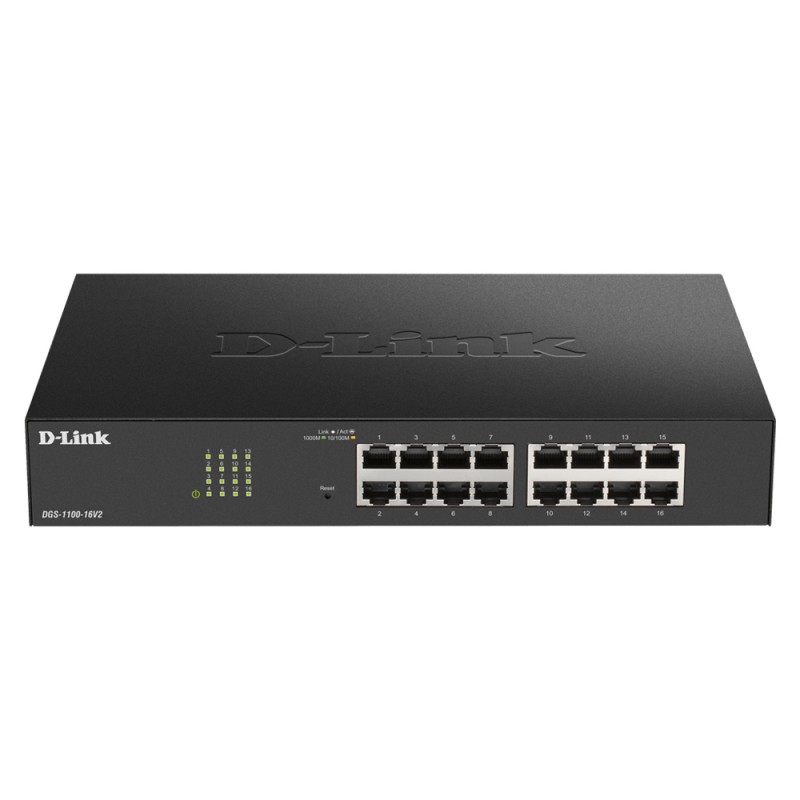

D-Link DGS-1100-16V2
  • D-Link DGS-1100-16V2
  • D-Link DGS-1100-16V2
  • D-Link DGS-1100-16V2
  • D-Link DGS-1100-16V2
Powerful Switching for your Business

The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.



Gigabit Ethernet Speeds

Take your Ethernet speeds to the next level with Gigabit Connectivity



Cutting Edge Green Technology

Innovative D-Link Green power saving features keep your budget in check



Manage Anywhere, Anytime

Remote setup & management is easy, and can be done from anywhere.



Easy to Use & Easy to Install

D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.



VLANs: Stronger Security & Better Traffic Management

Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.



For Voice

If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.



For Surveillance

If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.



Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
10G supportNo
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Built-in processorY
CertificationEMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC\ncUL, CE LVD, CB, BSMI, CCC
Copper ethernet cabling technology10BASE-T,10BASE-TX,1000BASE-T
Depth180 mm
Flash memory16 MB
Flow control supportY
Full duplexY
Heat dissipation34.46 BTU/h
Height44 mm
LED indicatorsY
MAC address table8000 entries
Mean time between failures (MTBF)710519 h
Memory typeDRAM
Networking standardsIEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of VLANs128
Operating altitude0 - 2000 m
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)-5 - 50 °C
Packet buffer memory4.1 MB
Power over Ethernet (PoE)No
Quality of Service (QoS) supportY
Security algorithmsSNMP,SSL/TLS
Spanning tree protocolY
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Switch typeManaged
Switching capacity32 Gbit/s
Web-based managementY
Weight1270 g
Width280 mm
FanlessY

dgs-1100-16v2.pdf

D-Link DGS-1100-16V2 Data Sheet

Download (511.44k)
