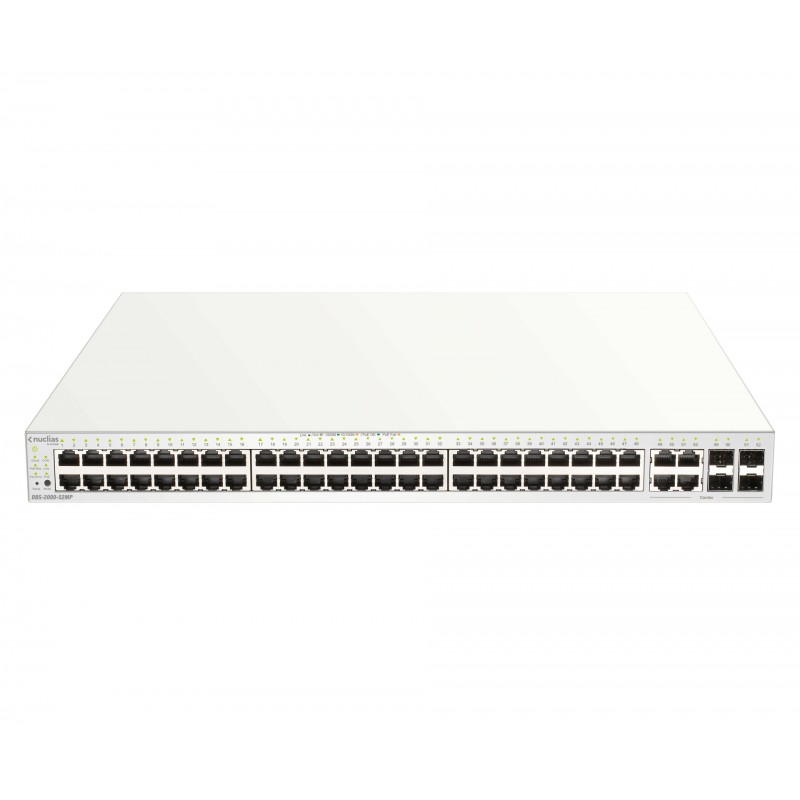

D-Link DBS-2000-52MP
  • D-Link DBS-2000-52MP
  • D-Link DBS-2000-52MP
  • D-Link DBS-2000-52MP
  • D-Link DBS-2000-52MP
  • D-Link DBS-2000-52MP
Cloud Networking, Refreshed

The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.



Management Over the Cloud

DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.



Easy Troubleshooting

The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.



Advanced Security Features

The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.
10G supportNo
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Built-in processorY
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth430 mm
Flash memory32 MB
Heat dissipation1634.01 BTU/h
Height44 mm
Internal memory256 MB
LED indicatorsY
Mean time between failures (MTBF)236406 h
Memory typeDDR3-SDRAM
Networking standardsIEEE 802.3ad,IEEE 802.3at
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)-5 - 50 °C
Package height149 mm
Package weight8656 g
Package width558 mm
Packet buffer memory12 MB
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity48
Security algorithmsWPA,WPA2
Spanning tree protocolY
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Switch typeManaged
Switching capacity104 Gbit/s
Web-based managementY
Weight6260 g
Width440 mm
Shipping (inner) case net weight17312 g
Quantity per shipping (inner) case2 pc(s)
Shipping (inner) case gross weight18600 g
Pallet gross weight (air)242700 g
Number of cartons per pallet (air)12
Quantity per pallet (air)24 pc(s)
Pallet height (air)1331 mm
Pallet gross weight (sea)354800 g
Number of cartons per pallet (sea)18
Quantity per pallet (sea)36 pc(s)
Pallet height (sea)1929 mm

dbs-2000-52mp.pdf

D-Link DBS-2000-52MP Data Sheet

Download (727.63k)
