10G support | No |
AC input voltage | 100 - 240 V |
Auto MDI/MDI-X | Y |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Built-in processor | Y |
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
Depth | 250 mm |
Flash memory | 32 MB |
Heat dissipation | 900.36 BTU/h |
Height | 44 mm |
Internal memory | 256 MB |
LED indicators | Y |
Mean time between failures (MTBF) | 469262 h |
Memory type | DDR3-SDRAM |
Networking standards | IEEE 802.3ad,IEEE 802.3at |
Operating altitude | 0 - 1500 m |
Operating relative humidity (H-H) | 0 - 95 % |
Operating temperature (T-T) | -5 - 50 °C |
Package height | 92 mm |
Package weight | 5043 g |
Package width | 365 mm |
Packet buffer memory | 4.1 MB |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) ports quantity | 24 |
Security algorithms | WPA,WPA2 |
Spanning tree protocol | Y |
Storage relative humidity (H-H) | 0 - 95 % |
Storage temperature (T-T) | -20 - 70 °C |
Switching capacity | 56 Gbit/s |
Weight | 3750 g |
Width | 440 mm |
Shipping (inner) case net weight | 15129 g |
Quantity per shipping (inner) case | 3 pc(s) |
Shipping (inner) case gross weight | 16001 g |
Pallet gross weight (air) | 403524 g |
Number of cartons per pallet (air) | 24 |
Quantity per pallet (air) | 72 pc(s) |
Pallet height (air) | 1314 mm |
Pallet gross weight (sea) | 660040 g |
Number of cartons per pallet (sea) | 40 |
Quantity per pallet (sea) | 120 pc(s) |
Pallet height (sea) | 2100 mm |

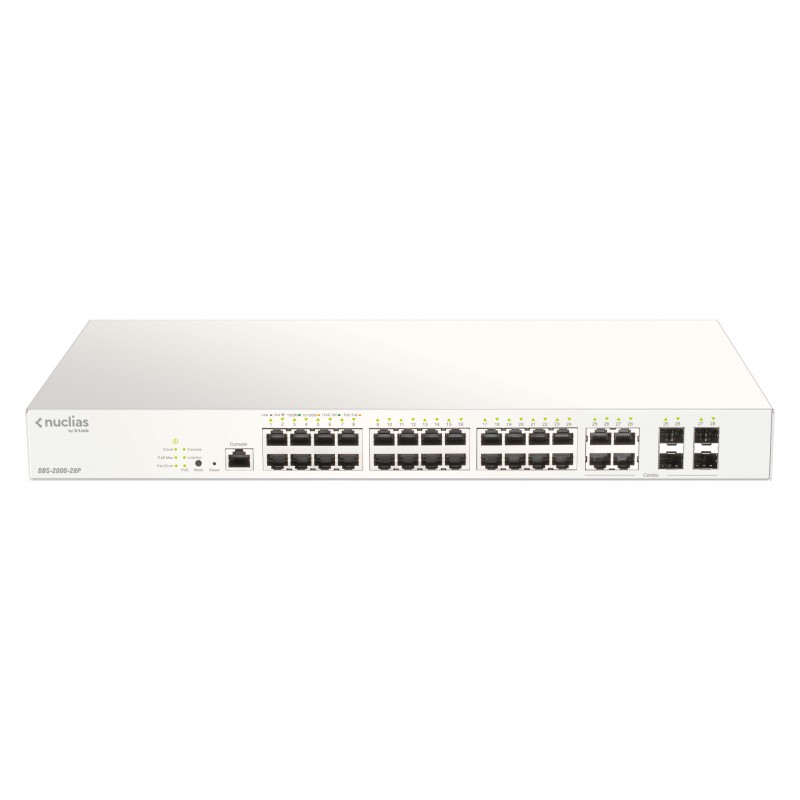

DBS-2000-28P, 56 Gbps, 41.7 Mpps, 24x 1G PoE RJ-45, 4x 1G SFP/RJ-45, 500MHz, 256MB DDR3, 440x250x44 mm
DBS-2000-28P
Out of Stock
